Specifications Projector:
Projection System:3LCD, 3-chip technologyProjection Method:Front/rear/ceiling mountDriving Method:Poly-silicon TFT Active MatrixPixel Number:2,304,000 dots (1920 x 1200) x 3Color Brightness – Color Light Output:5,000 lumensWhite Brightness – White Light Output:5,000 lumensAspect Ratio:16:10Resolution:1920 x 1200 (WUXGA)Supported Resolution:1920 x 1080 (1080p)Resize:640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type:300 W UHELamp Life:Up to 10,000 hours (ECO Mode), Up to 5,000 hours (Normal Mode)Throw Ratio Range:1.38 (Zoom: Wide), 2.28 (Zoom: Tele)Size – projected distance:50″ – 300″ (1.46 m – 8.95 m) (Zoom: Wide)Keystone Correction:Vertical: ± 30 degrees, Horizontal: ± 20 degreesUSB Plug ‘n Play:Projector is compatible with PC and Mac® computersContrast Ratio:Up to 15,000:1Color Reproduction:Up to 1.07 billion colors
General:
Operating Temperature:41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)Weight:10.2 lb(4.6 kg)Security:Kensington-style lock provision
Projection Lens:
Type:Optical Zoom (Manual)/Focus (Manual)F-number:1.5 – 2.0Focal Length:23.0 – 38.4 mmZoom Ratio:1.0 – 1.6
Projector Details:

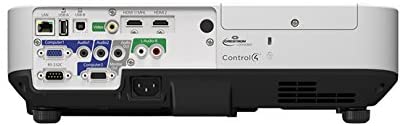

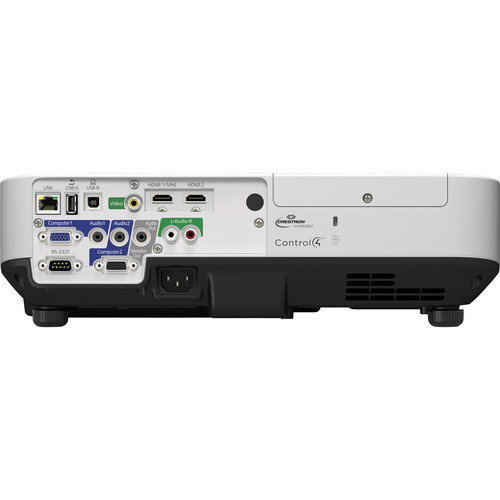

Input Signal:Auto, RGB, and ComponentInterfaces:
- 2x HDMI® (1 in common with MHL®)
- Computer: 1x D-sub 15 pin
- Video: 1x RCA
- Audio-in: 3x Mini stereo
- Audio-in: 1x RCA (L & R)
- Network: 1x RJ-45, 100
- Mbps Serial: 1x RS-232c
- Monitor Out: 1x D-sub 15 pin
Speaker:16 W (mono)Fan Noise:39 dB (Normal Mode), 29 dB (ECO Mode)
Projector Dimensions:
Including feet:14.85″ x 11.48″ x 4.93″ (W x D x H)Excluding feet:14.85″ x 11.46″ x 4.33″ (W x D x H)
Remote Control:
Features:Brightness, Contrast, Tint, Saturation, Sharpness, Input signal, Sync, Tracking, Position, Color temperature, VolumeOperating Distance:26.2 ft (8 m)Operating Angle:Right/left: ± 45 degrees, Upper/lower: +45 to -15 degrees
Power:
Power Supply Voltage:100 – 240 V AC ±10%, 50/60 HzPower Consumption:
- 429 W (Normal Mode)
- 340 W (ECO Mode)
- 2.0 W Standby (Communication On)
- 0.21 W Standby (Communication Off)
